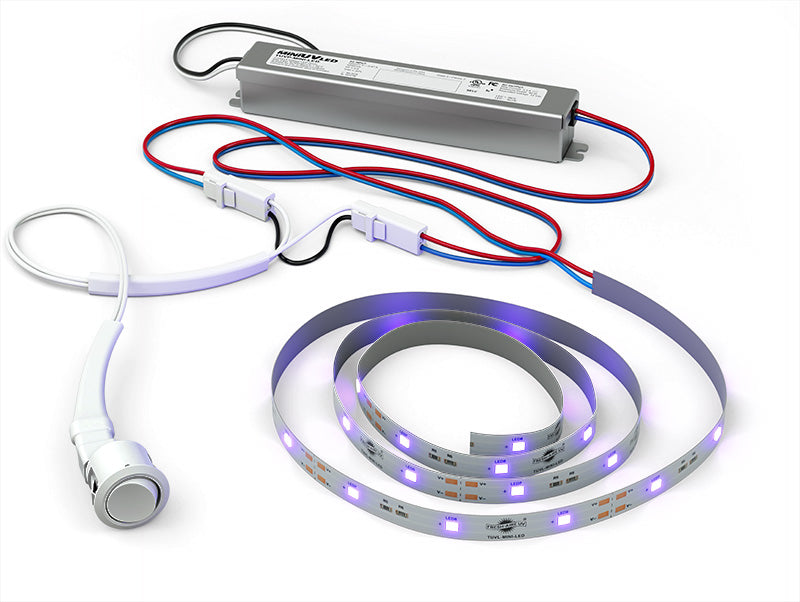

Fresh-Aire UV Mini UV LED System for Mini-Split & Ductless HVAC Units

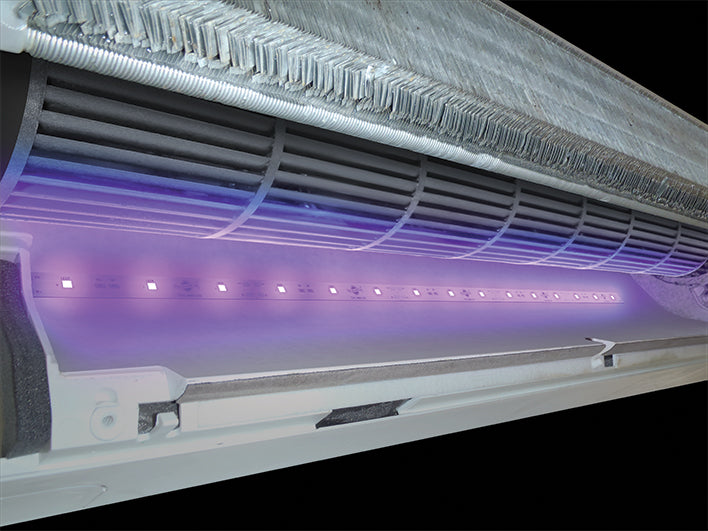

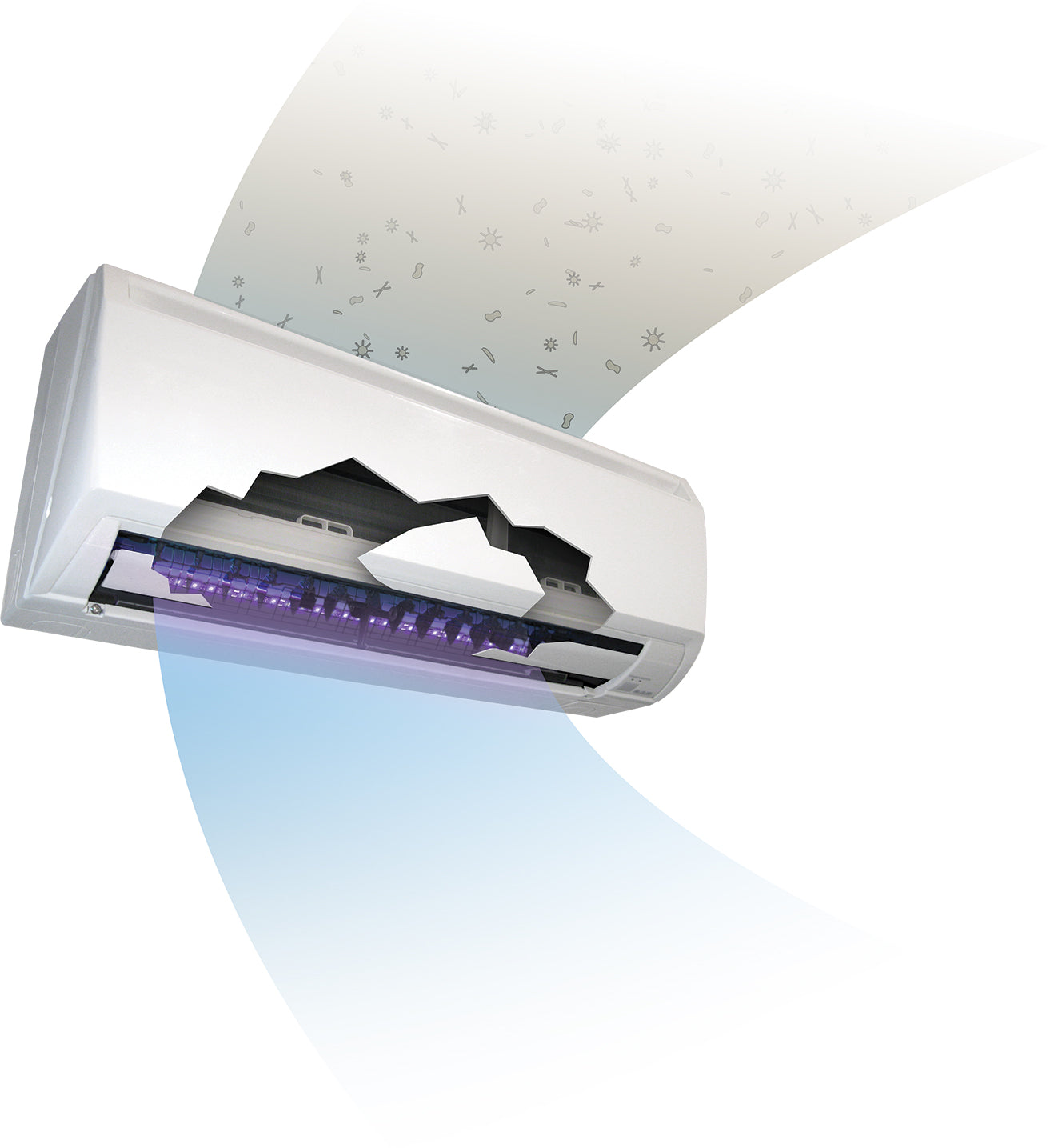

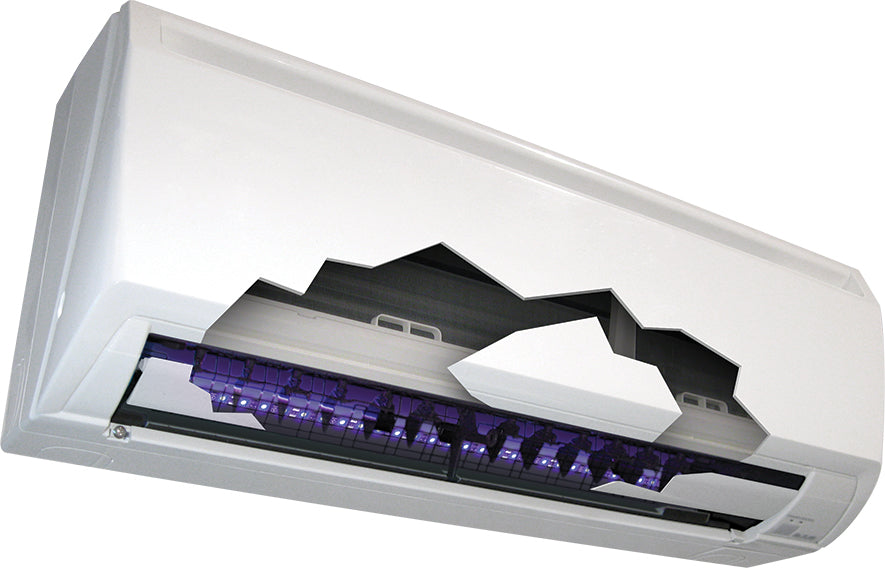

The Fresh-Aire UV Mini UV LED is the first UV LED disinfection system engineered specifically for mini-split and ceiling cassette HVAC systems. Built for tight, limited-space applications, this low-profile UV LED strip targets the most contamination-prone area of ductless systems—the blower wheel and internal air path—where mold and microbial growth commonly develop.

Unlike traditional mercury UV lamps, the Mini UV LED uses a UV LED spectrum designed to sterilize surfaces while having no impact on plastics, helping maintain a cleaner mini-split system, improve indoor air quality, and reduce maintenance caused by biological buildup.

Why Mini-Split Systems Need UV Protection

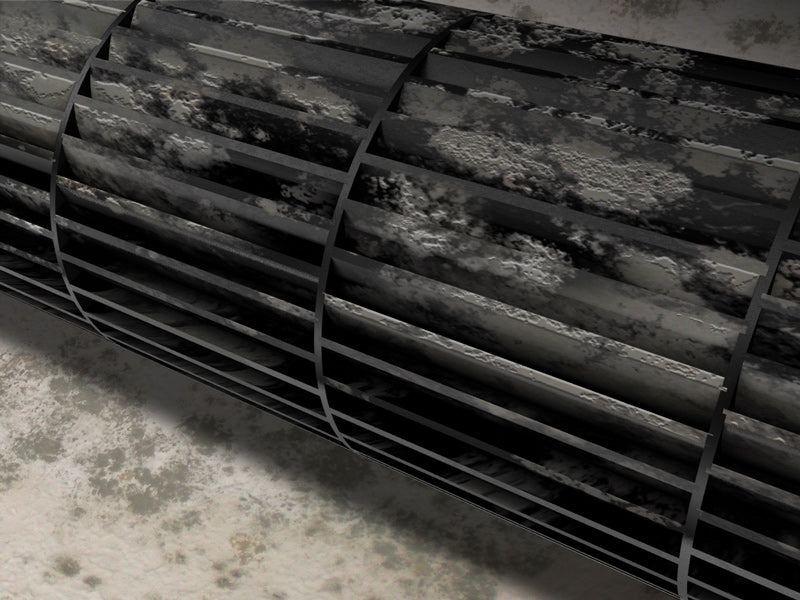

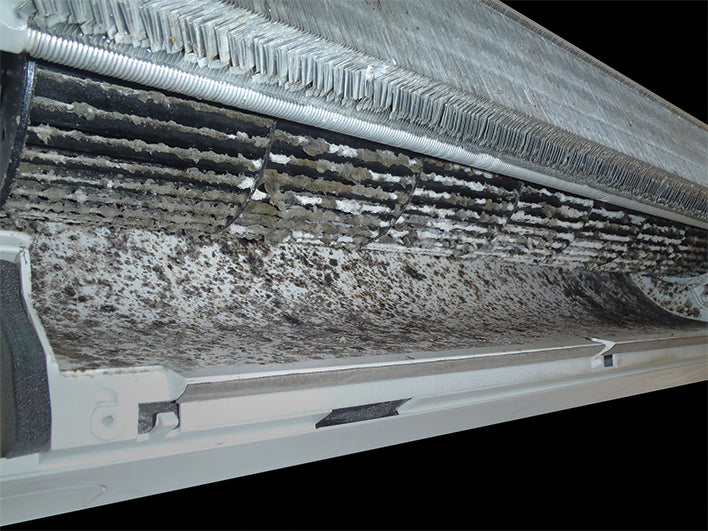

Mini-splits are efficient, but their compact design can allow moisture and biological contamination to accumulate inside the indoor unit— particularly on and near the blower wheel. Mini UV LED is designed to help inhibit mold growth and keep internal surfaces cleaner over time.

Key Features & Benefits

• Designed for mini-splits & ceiling cassettes and other limited-space HVAC applications
• Maintains a cleaner system by inhibiting mold and microbial growth inside the unit
• UV LED spectrum safe for plastics, ideal for internal mounting
• Replaceable 40" adhesive LED strip for quick, flexible installation
• Trimmable in 4" increments (cut only between copper squares)
• 50,000+ hour expected LED life for long-term protection
• 120–277 VAC power supply supports common jobsite voltages
• 5-year warranty on all parts

Technical Specifications

What’s Included

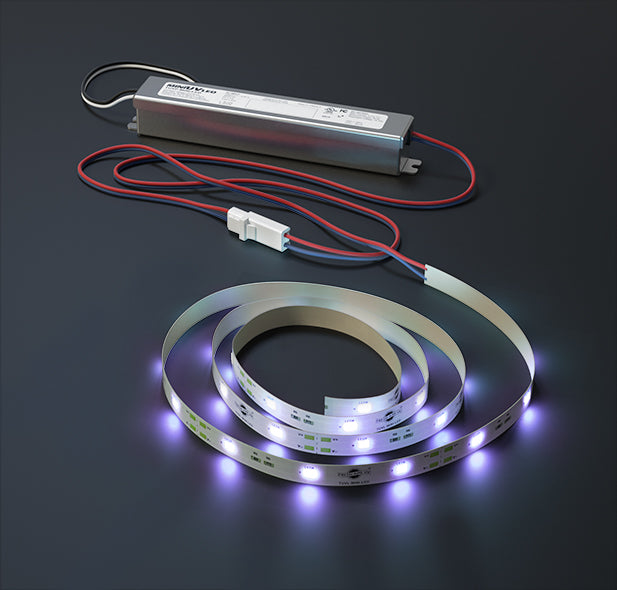

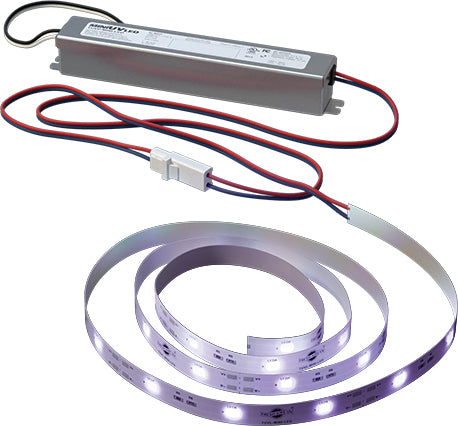

• 40" UV LED strip (replaceable)
• LED driver / power supply (120–277 VAC)
• Mounting hardware and zip ties
• Adhesive backing and alcohol prep wipe
• Warning labels
• Installation manual

Installation Notes

• Installation should be performed by a qualified HVAC technician
• Install the LED strip so the light shines into the air system, not into the room
• Clean the blower wheel prior to installation for best results
• Handle the LED strip by the edges only—do not touch the LED surface
• Disconnect power before servicing or installation
• Do not expose the LED strip to water or submerge during cleaning

Download the Installation Instructions HERE

Note: For larger ductless systems, an additional LED strip may be joined to create up to an 80" run (additional strip sold separately).

Available Models: TUV-MINI-LED and TUV-MINI-LED-SW (with Night Switch).
