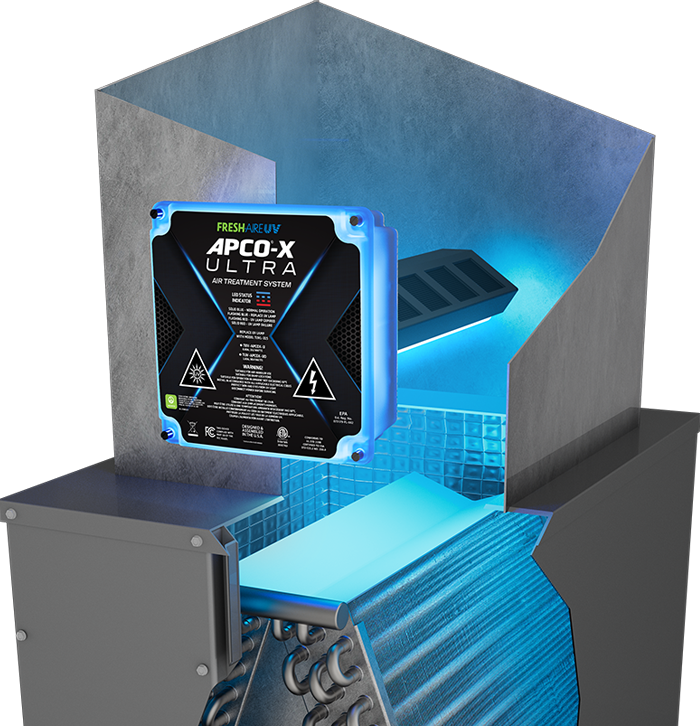

Fresh-Aire UV APCO-X Ultra In-Duct Air Purifier | Model TUV-APCOX-U

Your home's air filter catches dust — but it doesn't touch mold, bacteria, viruses, or the chemical odors circulating through your ductwork every time your system runs. The Fresh-Aire UV APCO-X Ultra handles exactly that. Installed once inside your HVAC duct, it runs continuously — treating the air passing through your system 24/7 without filters to swap, without complicated controls, and without producing ozone.

This is Fresh-Aire UV's most advanced residential air treatment system. It pairs a 254nm UVC germicidal lamp with proprietary EverCarbon™ activated carbon cells to neutralize biological and chemical contaminants at the source — inside the ductwork and on the coil itself. The result is cleaner air, a cleaner coil, and an HVAC system that runs more efficiently over time.

The APCO-X Ultra now includes a built-in LED status indicator so you always know the system is working — and get a heads-up when the lamp is due for replacement. Lamp replacement is the only maintenance required, and it's only needed every 3 years.

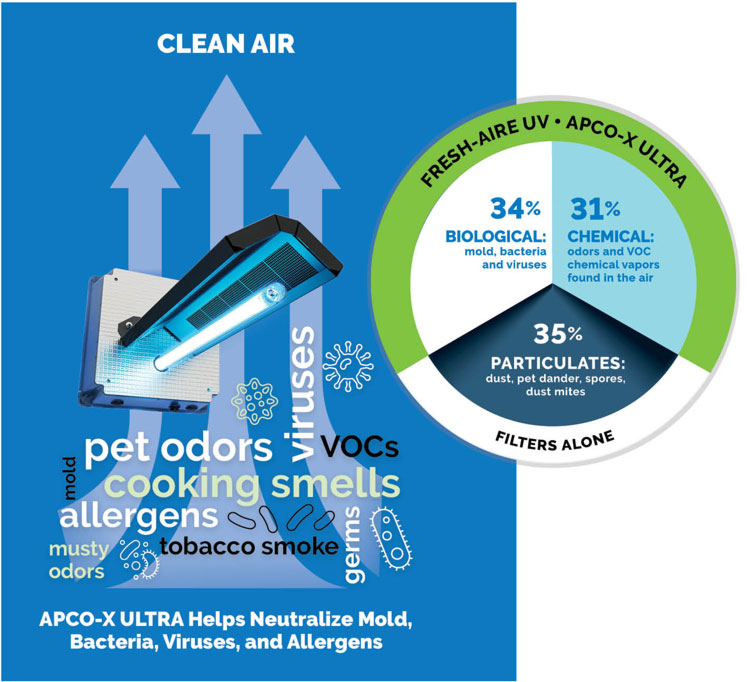

What It Treats

• Mold and mildew
• Bacteria and viruses
• Allergens
• Pet odors and cooking smells
• VOCs (volatile organic compounds)
• Tobacco smoke and musty odors

Tested Results (% reduction over 4 hours at 492 FPM airflow)

• Bacteria (S. epidermidis): 98.85%
• Viruses (MS2 coliphage): 99.03%
• Mold (A. niger): 78.8%
• Odors / VOCs: 99.9%

Key Features

• 254nm advanced UVC quartz glass lamp — germicidal, not ozone-producing
• EverCarbon™ activated carbon cells — lifetime, no replacement needed
• LED status indicator: solid blue (normal), flashing blue (replace lamp), flashing red (lamp expired), solid red (lamp failure)
• UL2998 validated — zero ozone output confirmed
• A2L certified
• Compatible with up-flow, down-flow, and horizontal HVAC installations
• Packard transformer included (120/208/240VAC primary to 24VAC)
• Pressure drop: less than 0.01" w.c. at 400 FPM — negligible system impact
• Designed and assembled in the USA

What's in the Box

• Main unit
• UV lamp (TUVL-315)
• Duct plate and gasket
• Self-tapping screws and quick nuts
• Power cord
• Tap-in connector and spade connector
• Warning sticker and sight glass
• Packard 24VAC transformer

Specifications

DIY-Friendly Installation

The APCO-X Ultra installs in the supply or return duct of your central air system. If you're comfortable with basic tools and cutting sheet metal or duct board, this is a manageable project. The unit mounts directly to the duct using the included duct plate, gasket, and screws. Power connects to a constant 24VAC source at the HVAC control panel — either directly or via the included transformer for line voltage connections. No special skills required beyond standard HVAC access and basic wiring comfort. Full installation instructions are included.

Download: Install Manual | Product Specs

Warranty Registration

Important Installation Notes

• Must be wired to constant power — do not connect to the blower relay
• Install upstream of humidifiers when possible
• Orient so UV light does not shine directly on non-UV-resistant materials (flex duct, filter media, humidifiers)
• Installation by anyone other than a licensed HVAC or electrical contractor voids the manufacturer warranty

Warranty

The APCO-X Ultra carries a lifetime warranty on all parts and a 3-year warranty on the UV lamp, provided directly by Fresh-Aire UV. Warranty registration and support are handled through Fresh-Aire UV. We are a reseller; all warranty claims and product support are managed by the manufacturer.
