Abatement Technologies HEPA-CARE® UV800F Germicidal UV Module for HC800F
Product Details

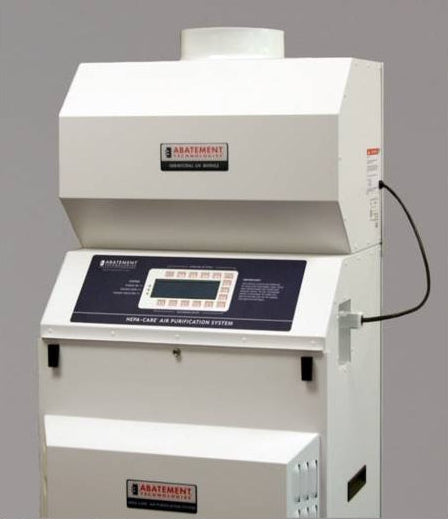

The UV800F is a germicidal UV disinfection module designed to mount directly on top of the Abatement Technologies HC800F portable HEPA air purification system. It slides onto the offset tabs of the HC800F's clean air exhaust grille and secures with included fasteners — installation typically takes a few minutes and does not require tools. The UV800F power cord plugs directly into the GFCI receptacle on the side of the HC800F; no separate wall receptacle is required. Once installed, the UV800F moves with the HC800F between rooms.
HEPA-filtered air exhausted by the HC800F passes through the UV800F's irradiation chamber before re-entering the room, where four UVGI lamps generate more than 17,000 µw/cm² of UV energy. Internal baffles slow the airflow and channel it closer to the lamps, maximizing UV dosage and microorganism dwell time. An on/off lamp switch allows the HC800F to operate independently of the UV module when UV irradiation is not required.
Note: The UV800F is designed exclusively for use with the HC800F portable unit. It is not compatible with the HC800C, HC800CD, HC800FD, or HC500 series.
UV Performance
| Lamps | 4 × T6-type 23W UVGI lamps (92W total) |
| UV Output | >17,000 µw/cm² @ 3" from lamps |
| UVC Output per Lamp | 6.8 W |
| UV Output @ 1m | 65 µw/cm² |
| Rated Lamp Life | 12,000 hours |
| Output at End of Rated Life | 80% of initial output |
Lamp Specifications
| Lamp Base & Type | T6 19mm four-pin with ridge |
| Bulb Length | 273mm (ARC 169mm) |
| Bulb Diameter | 19mm |
| Operating Current | 865 mA |
| Lamp Voltage | 26V |
| Lamp Wattage | 23W |
Safety Features
The lamp compartment is fully shielded — no direct UV exposure occurs during normal operation. Safety interlocks instantly deactivate all lamps if the lamp compartment is opened or if airflow is interrupted. A lamp on/off switch allows the HC800F HEPA unit to run with UV disabled when needed. Room-side lamp access facilitates replacement without removing the module. NRTL-certified to applicable UL and CSA safety standards.
Technical Specifications
| Model | UV800F |
| Compatible System | Abatement Technologies HC800F (required, sold separately) |
| Safety Certification | NRTL certified | UL | CSA |
| UV Lamps | 4 × T6-type 23W UVGI lamps (92W total) |
| UV Output | >17,000 µw/cm² @ 3" from lamps |
| Lamp Life | 12,000 hours rated | 80% output at end of life |
| Lamp Switch | On/off — allows HC800F to operate without UV |
| Safety Interlock | Deactivates lamps instantly on compartment opening or airflow interruption |
| Power Connection | Plugs into GFCI receptacle on HC800F — no separate wall outlet required |
| Installation | Slides onto offset tabs of HC800F exhaust grille | secured with included fasteners |
| Lamp Access | Room-side access — no disassembly required for replacement |
Use only Abatement Technologies OEM replacement lamps and parts. Substitute components void the warranty and adversely affect engineered performance levels.
