Abatement Technologies HEPA-CARE HC800CD Ceiling-Mounted Air Filtration System
Product Details

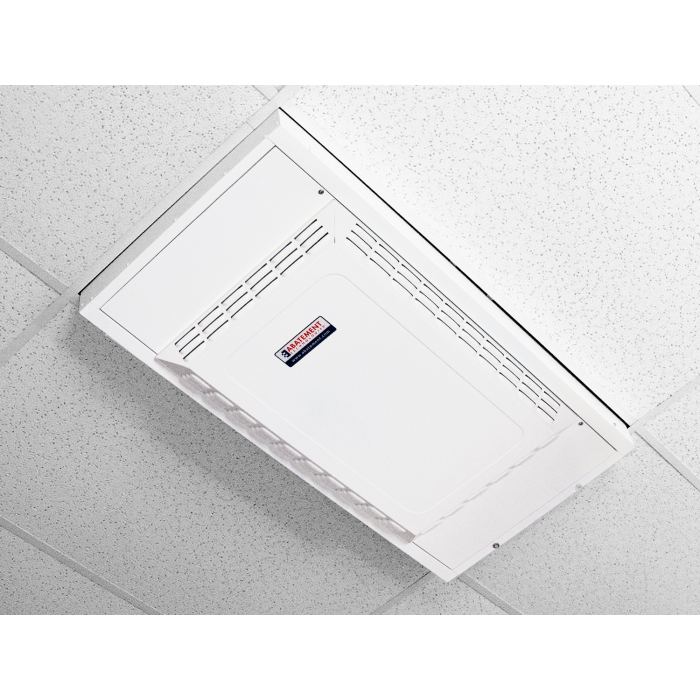

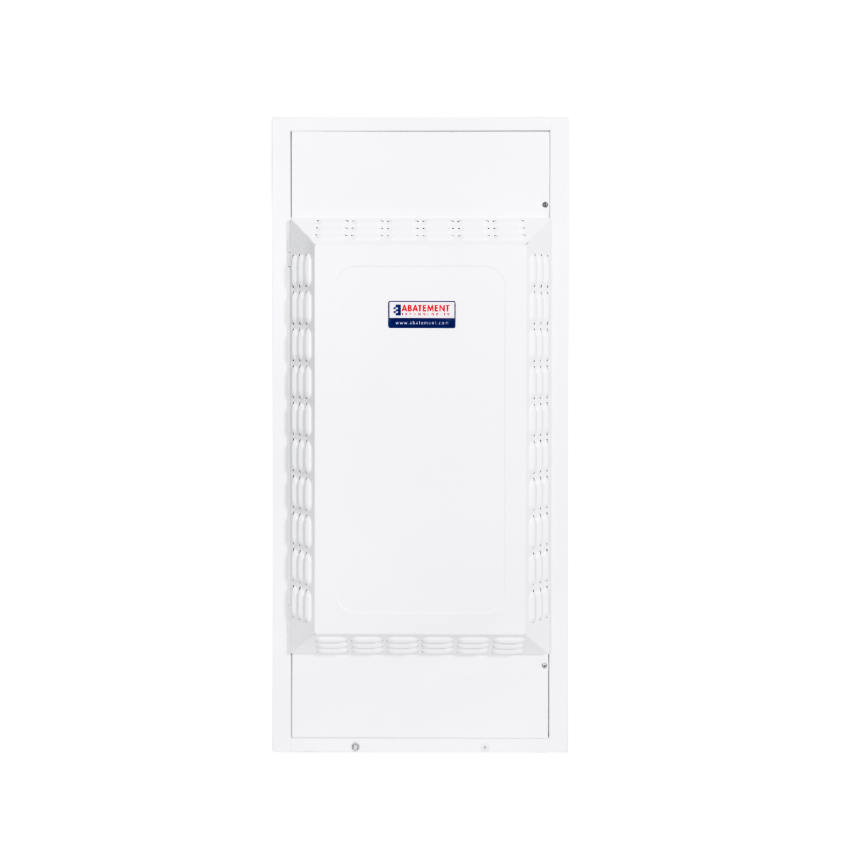

The HEPA-CARE® HC800CD Ceiling-Mounted Air Purification System from Abatement Technologies is a powerful, low-profile solution for airborne contaminant control in healthcare, laboratory, and cleanroom environments. Designed to install seamlessly in a 2 ft. x 4 ft. drop ceiling grid, the HC800CD delivers up to 850 CFM of airflow with five adjustable speed settings, making it capable of delivering up to 12 Air Changes per Hour (ACH) in rooms up to 4,250 sq ft.

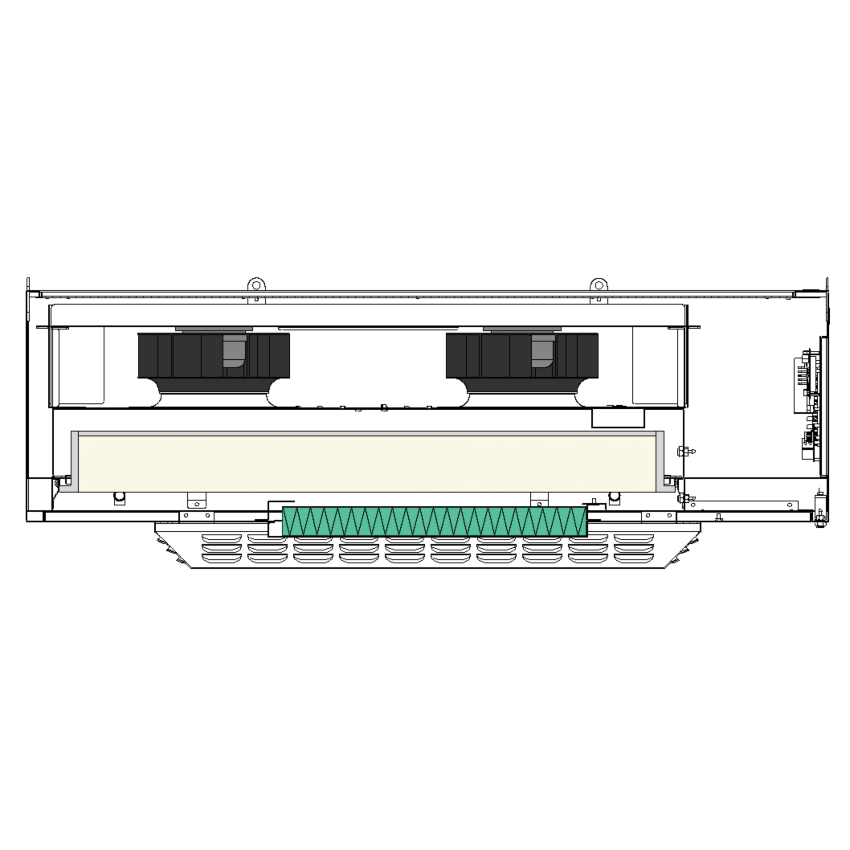

This commercial-grade unit includes a certified H14 pharmaceutical-grade HEPA filter that captures a minimum of 99.99% of particles ≥ 0.3 microns. Contaminated air passes through a dual-stage filtration system: a 2” MERV 8 pre-filter treated with a microbial growth inhibitor, followed by the HEPA filter mounted in a silicone-gel seal to prevent air bypass. Optional VAPOR-LOCK® carbon filters are available to remove odors, vapors, and chemical gases (sold separately).
Key Features:
- Quiet operation: 35 to 59 dBA at 5 feet

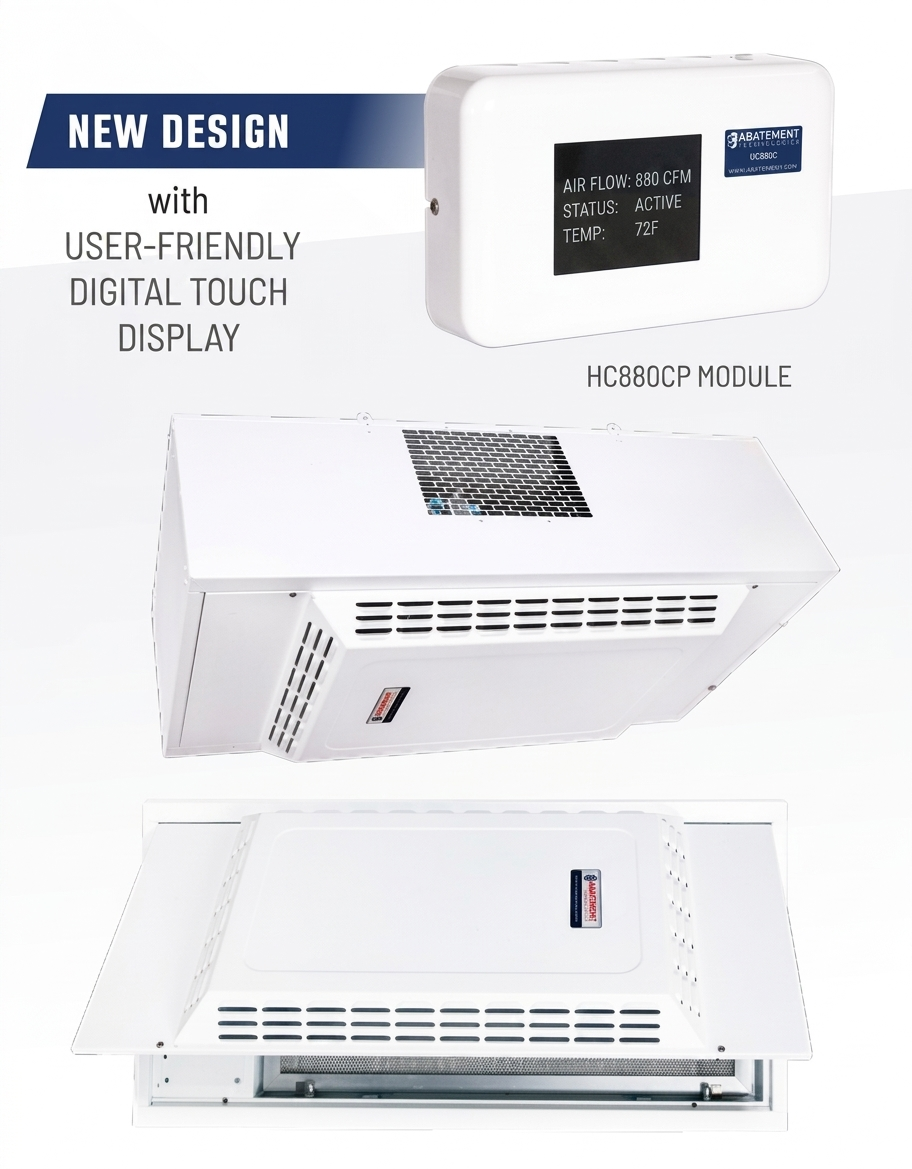

- Compact ceiling-mount design with remote wall-mounted LCD touchscreen control
- Advanced airflow monitoring and filter replacement alerts
- Zero-bypass dual cabinet design ensures maximum filtration performance
- Durable, easy-to-clean powder-coated aluminum housing
- Certified as a Class II Medical Device under FDA 510K
Filter Maintenance:
The built-in touchscreen control panel continuously monitors filter status. Alerts indicate when pre-filters and HEPA filters are approaching or have reached their load limits. HEPA filters should be replaced after 1,500 hours of use, when visibly loaded, or every two years—whichever comes first. Pre-filters may require more frequent replacement based on environmental conditions.
Always follow proper PPE and local regulatory guidelines when replacing filters. Filters must be disposed of in accordance with federal, state, and local regulations.
Specifications:
- Airflow: 200–850 CFM (5-speed settings)
- Dimensions: 22.875”L x 22.875”W x 16.25”H
- Weight: 77 lbs (90 lbs shipping weight)
- Power: 120V AC, 60Hz, 2 amps or less
- Sound level: 35–59 dBA at 5’
- Cabinet: White powder-coated aluminum
LCD Touchscreen Control Panel:
- 3.25” digital display with password protection
- On-screen alerts for filter replacement
- Displays airflow speed and unit status
- Menu-driven for easy navigation
Shipping Info:
DOCK DELIVERY BY COMMON CARRIER ONLY. Customer phone number is required for delivery scheduling. This product ships via freight, and additional charges may be incurred after checkout. Please get in touch with us for a firm-fixed price quote.
Replacement Filters Available:
- Pre-Filter: 2” MERV 8 particulate filter with microbial growth inhibitor
- HEPA Filter: H14 pharmaceutical-grade, 99.99% efficient @ 0.3 micron, silicone-gel seal
- Optional: VAPOR-LOCK® activated carbon filters for gas and odor control
Ideal for patient isolation rooms, infection control areas, laboratories, and other environments where clean air is critical, the HC800CD is a trusted solution for ceiling-mounted HEPA filtration with powerful performance and medical-grade certification.
