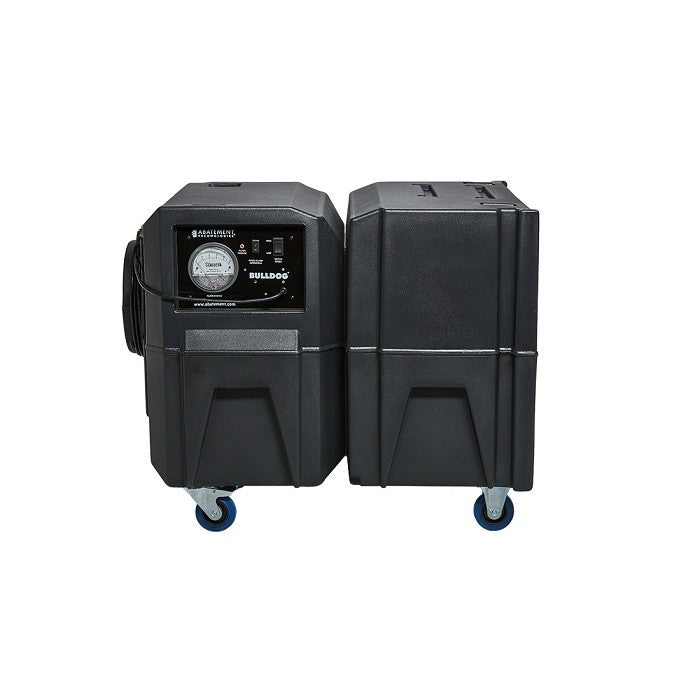

Abatement Technologies BULLDOG Deluxe Model BD2KMA Negative Air Machine

Features Include: Higher CFM, Three Stages of Filtration & Easier Filter Removal in a Tough Rotationally-Molded Cabinet

The powerful yet lightweight BULLDOG BD2KM contractors model and BD2KMA deluxe model from Abatement Technologies have been redesigned to deliver even more outstanding HEPA air cleaning performance. Its rotationally-molded polyethylene cabinet made from a UL94HB flame retardant poly resin is virtually indestructible and leak-tight.

The difference between the two units is that the BULLDOG BD2KM is equipped with a visual “change filter” indicator lamp, while the BULLDOG BD2KMA deluxe model adds a large 5” diameter differential pressure gauge and an audio “change filter” alarm.

State-of-the-art features of the BULLDOG Neg Air Machines include:

• Powerful Air Flow - High-performance motor and custom-engineered blower
• Virtually Indestructible Cabinet - Polyethylene cabinet is easy to clean and decontaminate
• True Original Equipment Micro-Glass HEPA Media Filter - Each model ships with a high-capacity 24” x 24” x 6” HEPA filter individually tested and certified at 2,000 cfm airflow to ensure that it provides minimum filtration efficiency of 99.97% @ 0.3 microns
• Optional 12”-Deep HEPA Filter - Unique design of the BULLDOG allows both models to also accept replacement 24” x 24” x 12” replacement HEPA filter in place of standard 6”-deep HEPA
• Multiple Airflow Settings - High and low motor speed settings
• User-Friendly Controls - Recessed controls to protect components
• Convenient Filter Access - Hinged access door provides quick access to filters
• Superior Mobility - Two fixed and two locking 4” swivel casters plus 4 lift handles
• Safety First - NRTL-certified to comply with UL Std. 507 & CAN/CSA Std. #C22.2 No. 113-M1984 for electrical safety & UL94HB flammability requirements for polymer cabinets housing energized electrical components

Net weight w/filters: 117 lbs.

Shipping weight: 137 lbs.

Dimensions (WxDxH): 28 1/2"W x 39 1/2"D x 31"H

Operating Speeds: 2

Peak Rated Airflow: 2,000 (H) 1,300 (L)

Cabinet Material: UL94HB flame retardant resin

Construction: Rotational Molding

Exhaust Collar Diameter: 12”

Carrying Handles: Yes (4)

Casters (2 Fixed, 2 Locking Swivel): Yes (4” dia.)

Recessed Controls: Yes

Blower Type: Squirrel Cage

Motor Output: 1.0 HP

Circuit Requirements: 120V/60Hz/15A

Operating Amp Draw:< 10.0 A

Thermal Overload Protection: Yes

Filter Change Lamp: Yes

Audio Filter Alarm: No

Filtration Stages: 2-3

99.97% HEPA Filter: Yes (6” or 12”)

First Stage Prefilter Part#: H2001

Second Stage Prefilter Part#: H2002

Optional Second Stage Prefilter Part#: VL2024

HEPA Filter Part #: H242406-99

Optional HEPA Filter Part #: H2010M
