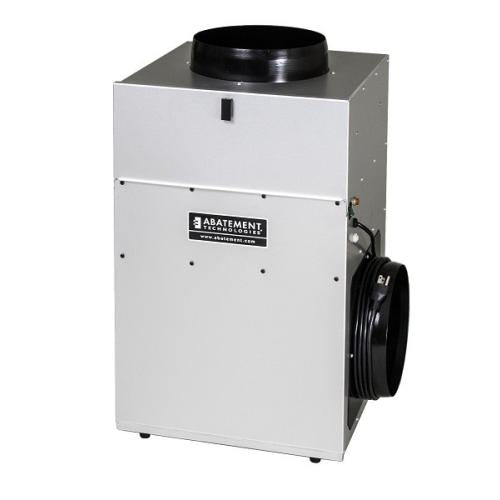

Abatement Technologies CAP1200-UVP Home/Office HEPA Air Purifier

Five-stage whole-home HEPA filtration with continuous germicidal UV-C irradiation and photolytic ozone odor elimination — the most comprehensive central air purification system Abatement Technologies makes for residential and commercial use.

The Abatement Technologies CAP1200-UVP is the top-of-the-line configuration in Abatement's CAP series. It combines five-stage prefiltration, True HEPA capture, and the dual-frequency UVP lamp — delivering germicidal UV irradiation plus controlled ozone-based odor elimination — in a system that handles spaces up to 3,750 sq ft. Built on the same aluminum cabinet and German-engineered motor as every unit in the series, with a 10-year motor warranty.

Abatement Technologies systems have been installed in more than 4,000,000 healthcare, government, commercial, and residential buildings since 1985.

Who This Is For

• 🔧 HVAC contractors — the CAP1200-UVP is the right spec when a client needs maximum filtration, germicidal performance, and odor control in a larger space. OEM annual kits stocked and available same-day.
• 🏠 Confident DIY homeowners — larger home with persistent odor issues. Same installation process as the CAP600 series. Full documentation provided.
• 🏛️ Government & housing authorities — documented filtration performance, 10-year warranty, pre-certified HEPA, suitable for larger multi-unit, assisted living, and public housing applications where both particulate and odor control are required.
• 🐾 Larger homes with pets, smokers, or chronic odor sources — the UVP lamp's photolytic oxidation breaks down odor-causing compounds throughout the duct system, not just the air passing through the unit.
• 🏢 Home offices & small commercial — 3,750 sq ft coverage with the most complete filtration stage count available in this form factor.

How It Works — 5-Stage Filtration + Germicidal UV + Photolytic Ozone

Stage 1 — MERV 4 Pre-Filter (F621)

Captures coarse particulate. Biodegradable, 5× dirt-holding capacity of fiberglass filters. Replace monthly.

Stage 2 — MERV 6 Pleated Particulate Filter (H502)

Finer particle capture — protects the carbon stage and HEPA from early loading. Replace every 6 months.

Stage 3 — Vapor-Lock Carbon Filter (VL1002)

Dedicated activated carbon stage — captures odors, VOCs, and gaseous contaminants. Replace annually.

Stage 4 — True HEPA Filter (H610C-99)

Pre-certified True HEPA — 99.97% efficient at 0.3 microns. Captures bacteria, mold spores, pollen, smoke, soot, and sub-micron particulate. Replace every 2–3 years.

Stage 5 — Germicidal UV-C + Photolytic Ozone (UVP625)

The dual-frequency UVP625 lamp is positioned inside the cylindrical HEPA where air is pre-cleaned. The first frequency delivers germicidal UV-C irradiation. The second frequency generates controlled ozone via photolysis — breaking down odor compounds throughout the ductwork and coils. Ozone reverts to oxygen in seconds. Measured at 10 feet downstream: ≤0.01 ppm — well below the 0.05 ppm outdoor baseline. You will not smell ozone in your living space.

Key Specifications

Abatement Advantage — Volume Discount Pricing

Contractors, housing authorities, and multi-unit buyers: the CAP1200-UVP qualifies for our Abatement Advantage volume discount program. Combine units, annual filter packs, and replacement media — Silver (5% off at $2,500+), Gold (7% off at $5,000+), or Platinum (10% off at $10,000+). Discount applies automatically at checkout.

Annual Maintenance Kit

Keep your system on schedule with the PAK1200-UVP Annual Filter & Lamp Pack — all replacement filters and the UVP625 lamp for a full year in one order.

The H610C-99 HEPA filter is stocked and ships same day for your 2–3 year replacement cycle.

No significant odor issues? See the CAP1200-UV. Smaller home under 2,250 sq ft? See the CAP600-UVP.
